0036: Issue Credential Protocol 1.0

Status

Summary

Formalization and generalization of existing message formats used for issuing a credential according to existing RFCs about message formats.

Motivation

We need a standard protocol for issuing credentials.

Tutorial

The Issue Credential protocol consists of these messages:

In addition, the ack and problem-report messages are adopted into the protocol for confirmation and error handling.

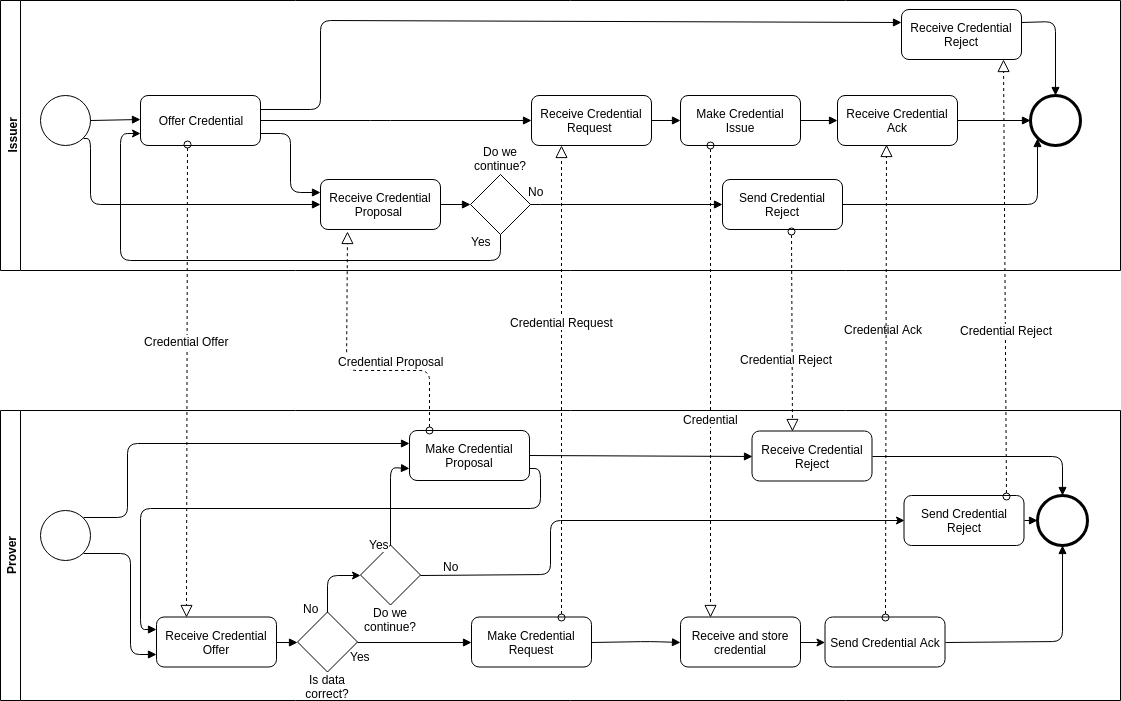

Choreography Diagram:

issuance

Propose Credential

An optional message sent by the Prover to the Issuer to initiate the protocol or in response to a offer-credential message when the Prover wants some adjustments made to the credential data offered by Issuer. In Hyperledger Indy, where the request-credential message can only be sent in response to an offer-credential message, the propose-credential message must be used if the Prover wants to initiate the protocol. Schema:

{
    "@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/propose-credential",
    "@id": "<uuid-propose-credential>",
    "comment": "some comment",
    "credential_proposal": <json-ld object>,
    "schema_id": "Schema ID string",
    "cred_def_id": "Credential Definition ID string"
}

Description of attributes:

Offer Credential

A message sent by the Issuer to the Prover to initiate the protocol when required by the Credential flow. In Hyperledger Indy, this message is required. In credential implementations where this message is optional, an Issuer can use the message to negotiate the issuing following receipt of a request-credential message. Schema:

{
    "@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/offer-credential",
    "@id": "<uuid-offer>",
    "comment": "some comment",
    "credential_preview": <json-ld object>,
    "offers~attach": [
        {
            "@id": "libindy-cred-offer-0",
            "mime-type": "application/json",
            "data": {
                "base64": "<bytes for base64>"
            }
        }
    ]
}

Description of fields:

{
   "schema_id": string,
   "cred_def_id": string,
   "nonce": string,
   "key_correctness_proof" : <key_correctness_proof>
}

This message may have payment request decorator, see payment section below

Request Credential

A message sent by the Prover to the Issuer to request the issuance of a Credential. Where supported by the Credential implementation, this message initiates the protocol. In Hyperledger Indy, this message can only be sent in response to an Offer Credential message. Schema:

{
    "@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/request-credential",
    "@id": "<uuid-request>",
    "comment": "some comment",
    "requests~attach": [
        {
            "@id": "libindy-cred-req-0",
            "mime-type": "application/json",
            "data": {
                "base64": "<bytes for base64>"
            }
        },
    ]
}

Description of Fields:

{
  "prover_did" : string,
  "cred_def_id" : string,
  "blinded_ms" : <blinded_master_secret>,
  "blinded_ms_correctness_proof" : <blinded_ms_correctness_proof>,
  "nonce": string
}

This message may have payment confirmation decorator, see payment section below

Issue Credential

This message contains the credentials being issued and is sent in response to a valid Request Credential message. Schema:

{
    "@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/issue-credential",
    "@id": "<uuid-credential>",
    "comment": "some comment",
    "credentials~attach": [
        {
            "@id": "libindy-cred-0",
            "mime-type": "application/json",
            "data": {
                "base64": "<bytes for base64>"
            }
        }
    ]
}

Description of fields:

{
    "schema_id": string,
    "cred_def_id": string,
    "rev_reg_def_id": Optional<string>,
    "values": <see cred_values_json above>,
    "signature": <signature>,
    "signature_correctness_proof": <signature_correctness_proof>
}

Preview Credential

This is not a message but an inner object for other messages in this protocol. It is used construct a preview of the data for the credential that is to be issued. Schema:

{
    "@type": "did:sov:BzCbsNYhMrjHiqZDTUASHg;spec/issue-credential/1.0/credential-preview",
    "attributes": [
        {
            "name": "attribute name",
            "mime-type": "type",
            "encoding": "encoding",
            "value": "value"
        },
        ...
    ]
}

The main element is attributes. It is an array of objects, each with the following fields:

Threading

Threading can be used to initiate a sub-protocol during an issue credential protocol instance. For example, during credential issuance, the Issuer may initiate a child thread to execute the Present Proof sub-protocol to have the Prover prove attributes about themselves before issuing the credential.

Details about threading can be found in the message id and threading RFC.

Payments while credential exchange

There is a high probability that some networks would like to use some implementation of payment (e.g. utility token) for balance in ecosystem. The value flow already presents while CX but it looks one way for simple case: issuer gives value to hodler (credential which can be used by holder for his needs) but doesn’t receive anything back. To resolve this case some payment may be charged by Issuer from Holder per credential. In general different payment flows are possible. Like a holder may provide proof to verifier for some data analysis or other Verifier’s need and in this case Verifier may pay to Holder. So both processes described in this RFC (issuance) and presentation may be tied with payments. Also there is a good chance that payment flow may be combined with other message flows, so it may be considered as decorator. This decorator is optional.

Payment decorators

These decorators are out of subject of this RFC, see Payment decorators RFC

Payment flow

Payment request may be included to Credential Offer msg from Issuer to Holder. And receipt should be provided in this case in Credential Request by Issuer. While credential presentation the Verifier may pay to Holder as compensation for Holder for disclosing data. Payment receipt should be included into Presentation Request. Verifier may skip it in first request, but in this case Holder may request payment by sending back Presentation Proposal with appropriate decorator inside it.

Limitations

Smart contracts may be missed in ecosystem, so operation "issue credential after payment received" is not atomic. It’s possible case that malicious issuer will charge first and then will not issue credential in fact. But this situation should be easily detected and appropriate penalty should be applied in such type of networks.

Negotiation and Preview

Negotiation prior to issuing the credential can be done using the offer-credential and propose-credential messages. A common negotiation use case would be about the data to go into the credential. For that, the credential_preview element is used.

Reference

Drawbacks

Why should we not do this?

Rationale and alternatives

Prior art

Similar (but simplified) credential exchanged was already implemented in von-anchor.

Unresolved questions
